Preferences

You can find here a description of preferences you can set for the BranchingManager software.

To access the "Preferences" window, use the "Schema->Preferences" main window menu option.

You can change:

Startup parameters: Initial language, default loaded schema file, and appearance.
Display parameters: Automatic window resize and centering when loading/updating a schema. Smooth filter.
Print parameters: Fit to print on one single page or not.

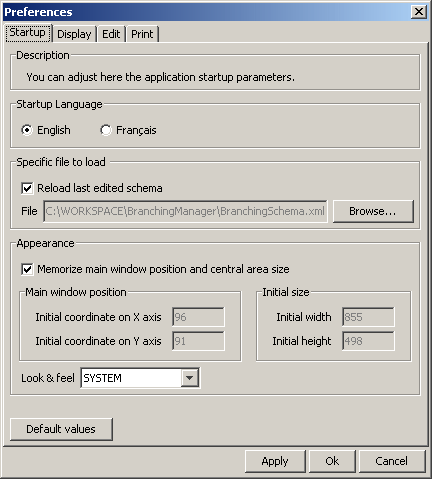

Startup Configuration

Startup Parameters

You can set parameters used at startup:

Initial language.
Choose schema file to load at startup (or last edited one).
Initial main window location and central area size (or use last ones).
Initial "look & feel".

Startup Preferences

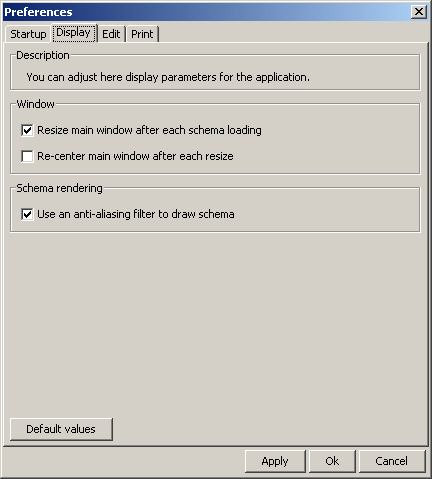

Display Configuration

You can set parameters used for display:

Automatically resize or not main window when loading a schema to fit its dimension.
Automatically re-center or not main window on screen when it is resized.
Use or not a smooth filter (anti-aliasing) on the schema.

Display Preferences

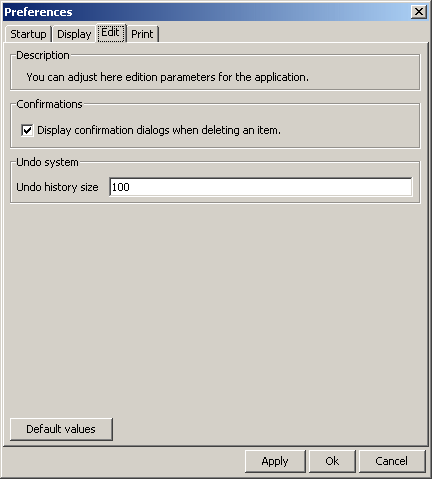

Edit Configuration

You can set parameters used for edtion:

Display configuration dialogs for deletions.
Size of undo history.

Edit Preferences

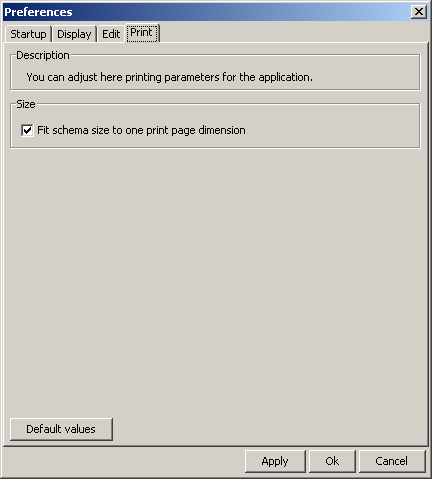

Print Configuration

You can set parameters used to print schema:

Fit schema size to print it on a single page or not.

Print Preferences
